Catalytic Combustion System (CCS), Direct Flame Incinerator (DFI), and Regenerative Thermal Oxidizer (RTO) are well known as combustion methods to treat exhaust gases. In contrast, active carbon adsorption, solvent recovery, chemical washing, biological deodorizing, etc. are represented as non-combustion methods.

DFI(Direct Flame Incinerator)

CCS(Catalytic Combustion System)

voc 2
Temperature:700~800 degC
voc 3
Temperature:200~400 degC

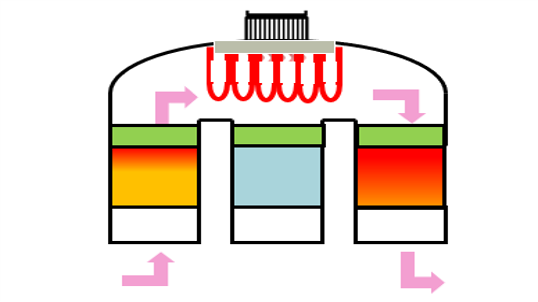

RTO(Regenerative Thermal Oxidizer)

Other Methods

voc 4Temperature:750~900 degC
  • Active Carbon Adsorption
  • Solvent Recovery
  • Chemical Washing(Wet Scrubber)
  • Biological Deodorization

 CCSDFIRTO
Temp degC 200~400 degC 700~800 degC 750~900 degC
Running Cost
Middle
×
High

Low
VOC Conversion
Excellent

Excellent except CO

Good
Thermal NOx
Not an issue

Generation of NOx, CO

Generation of NOx
Odor Treatment
Best

Better

Better
Size
Small

Middle
×
Large
Remarks Catalyst poison measures Generation of NOx, CO High running cost Generation of NOx Need care of dust Large foot print Heavy weight



A catalytic combustion system can be applicable to any exhaust gases by taking measures against catalyst poisons. Moreover CCS can be applicable to odor treatment without generating thermal NOx or CO. N-U offers various catalysts for CCS with high performance and low-temperature activity.
